Nyx Mod2 Modular Titanium Silencer

NYX™ Mod2 Silencer



The NYX™ Mod2 Silencer is a modular version of the is the successful NYX™ Silencer. The shooting community has recognized the need for reconfigurable suppressors that can be tailored towards specific shooting needs and Energetic Armament has responded. The NYX™ Mod2 Silencer is high performance, all-titanium rimfire silencer that may be easily reconfigured between a short 4-baffle configuration and a full length 8-baffle configuration. Like the original NYX™, it’s aerospace-inspired tube design represents the state-of-the-art in engineered firearms components with the highest strength-to-weight ratio in it’s class.  This direct thread (1/2-28RH) silencer features a 4 or 8 k-baffle design to provide superior sound reduction while maintaining an extremely light weight at only 2.45 oz (short) or 4.15 oz (full). This represents best-in-class low weight for an all-titanium suppressor rated for 22LR, 22WMR, 17HMR and FN 5.7x28mm.



The NYX™ Mod2 Silencer features a unique, patented, outer tube with aerospace-style weight reduction webbing. This produces an extremely light weight, rigid tube. Titanium is used for all components for several reasons including high strength-to-weight ratio and extreme corrosion resistance. The outer tube features a shot peened finish that is a natural matte dark gray or an optional Cerakote® Graphite Black.



Titanium is naturally corrosion resistant so no coating is needed however an optional Cerakote® Graphite Black C-Series High-Temp finish is available for shooters who prefer a black finish. Rimfire shooting is extremely dirty and makes cleaning any silencer every 500-1000 rounds necessary. Because of titanium’s chemically inert properties, the NYX™ Mod2 Silencer can be cleaned with aggressive solvents and cleaning solutions without fear of damage unlike aluminum and stainless silencers. Your suppressor will stay looking sharp even after lots of use and cleaning. Both end caps are removable without the need for special tools making disassembly and reassembly simple.





 Key NYX™ Mod2 Silencer specifications:



  • Weight: 2.45oz (69 g) Short Config. ,4.15oz (118 g) Full Config.  – lightest all titanium silencer in it’s class!
  • Length: 3.7 in. (94 mm) Short Config., 6.5 in. ( 165 mm) Full Config. x Dia. 1 in. (25mm)
  • Material: 100% titanium – All components machined in the US from US origin, DFAR certified 6Al-4V (Grade 5) alloy
  • Mounting: 1/2-28 RH Standard Direct Thread
  • Rating: 22LR (Full Auto), 22WMR, 17HMR, FN 5.7x28mm
  • Design: 2-configuration modular 4/8 K-baffle w/ webbed tube and removable end caps, 13/16 in. standard hex





NYX™ Mod2 Silencer finish options:



  • Natural Finish: Natural titanium matte shot peened tube w/ bright end caps – MSRP $425 (SKU: EA02)
  • Black Finish: Cerakote® Graphite Black C-Series High-Temp – MSRP $450 (SKU: EA03)

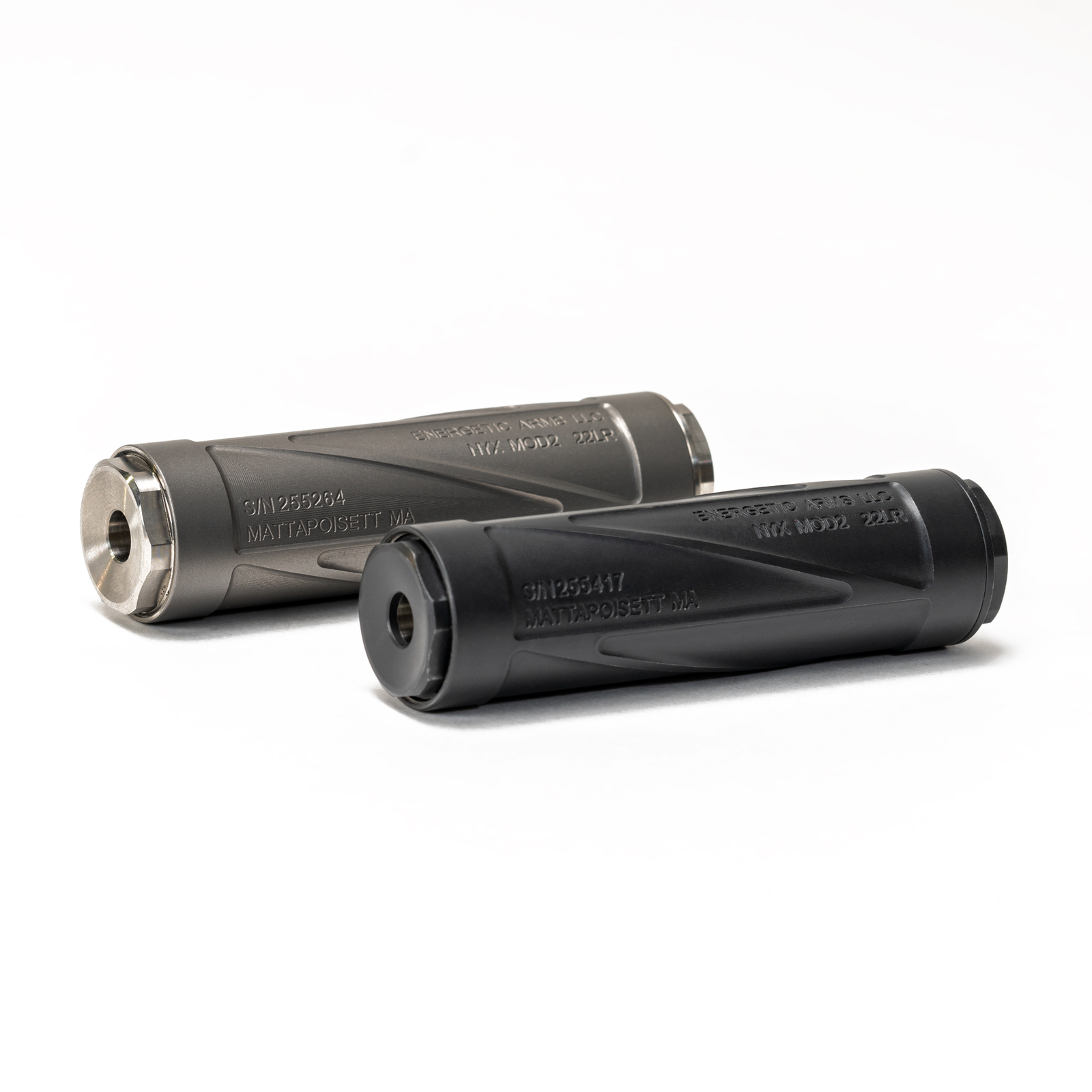

NYX Mod2 Silencer Short Configuration

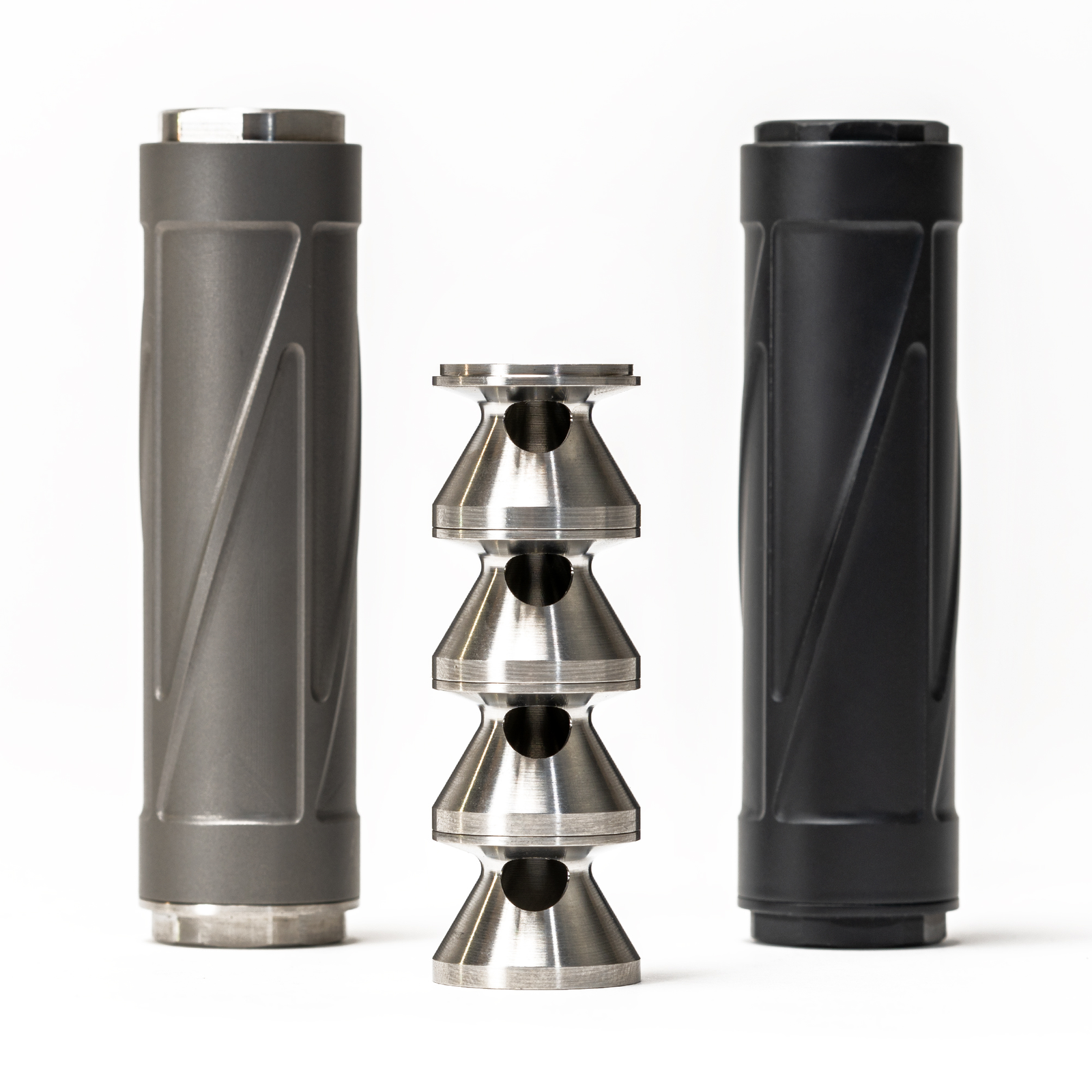

4-Baffle Short Configuration

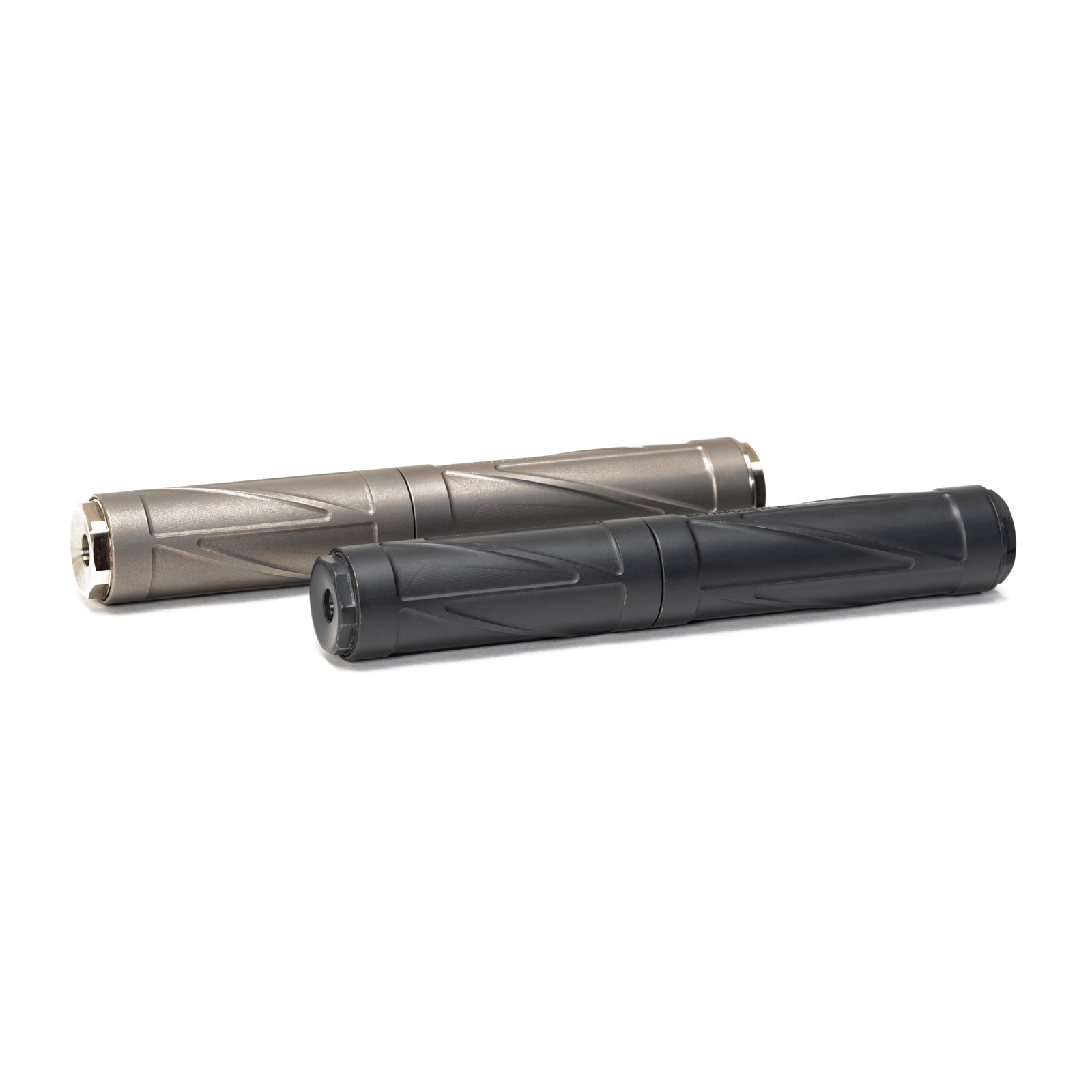

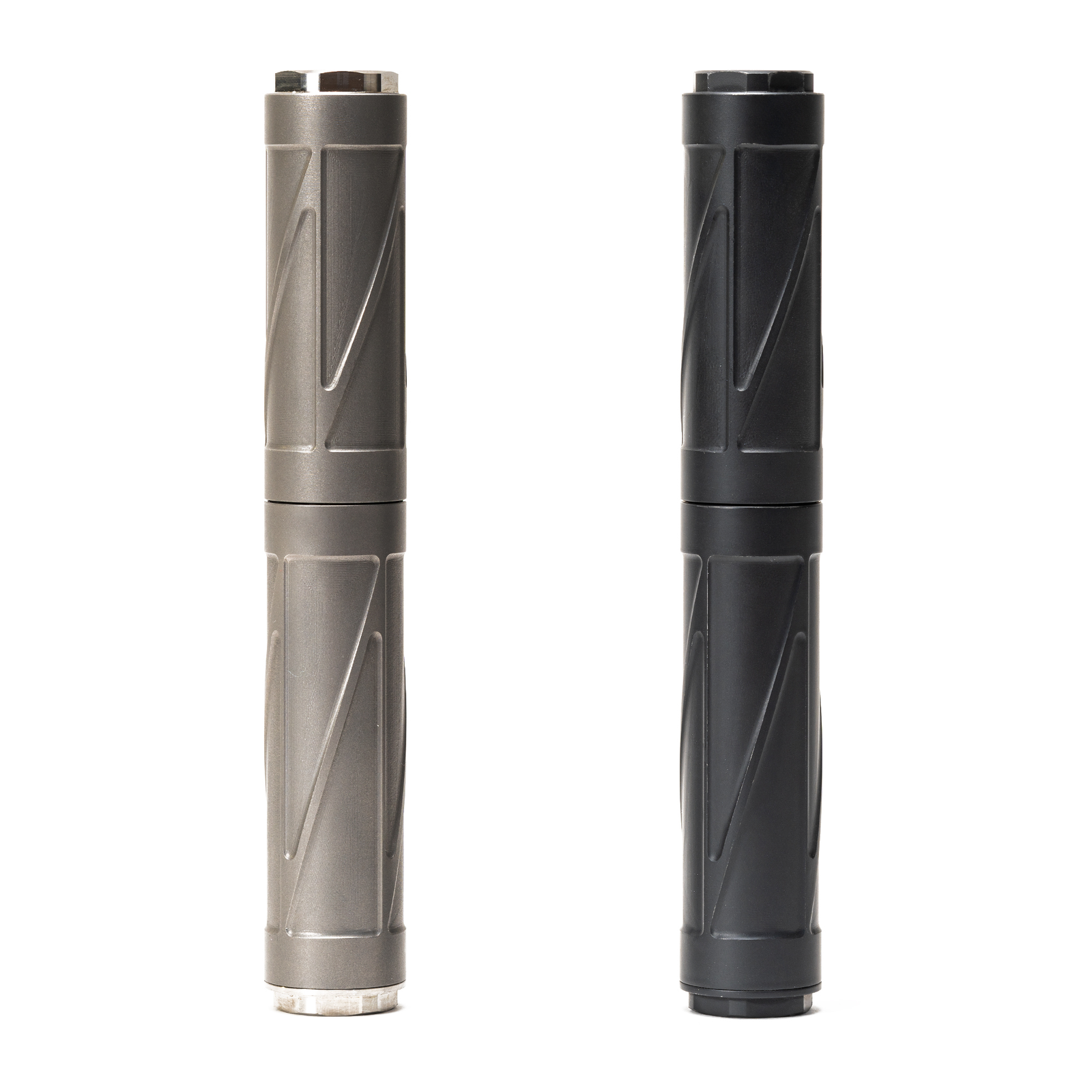

NYX Mod2 Suppressor modular designModular for operational reconfiguration from 4 to 8 baffles

Ultra light weight titanium silencer

Ultra light weight at only 2.45 oz for the short configuration

Nyx mod2 modular silencer

Click here for the full user manual & instructions: NYX_MOD2 Instructions_R1_10-16-17
